Insulated Roofing Sheets

Our composite roof panels are pre-assembled insulated roofing sheets. They are a sandwich of insulation filler, steel profiled top sheet and a steel profiled bottom liner panel.

Our composite panels come pre-assembled so much easier to fit than the built-up double skin system. The insulation reduces noise which is ideal if working inside, they are low maintenance and top-rated for thermal performance and fire safety, so an excellent method to insulate and clad any building. Composite panels minimize heat loss through roofs and walls which not only keeps your building warm but also reduces your carbon footprint and saves on the ever-increasing cost of energy bills.

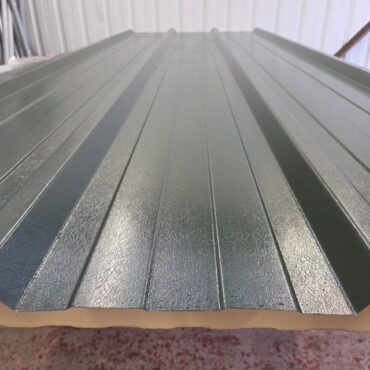

Profile: The top sheet is 0.55mm gauge Tricomet 33/1000 box profile (consisting of 4 profiles and 3 valleys) Tata Steel (CE marked) with a choice of all our standard colours in PVC plastisol coated finish and a 0.4mm pure white liner panel facing into the building.

Length and Width: The panels are easily lapped and cover 1m in width once fitted. We manufacture panels to customers’ exact requirements from 2 metres up to 15 metres in length (shorter length sheets are available but will incur a surcharge) and can deliver them anywhere in the UK.

Insulation Thickness: The insulation/core is available in 40mm, 60mm, 80mm, 100mm and 120mm thicknesses.

Composite Rooflights: Factory Assembled Insulated Rooflights (FAIR’s) work in conjunction with the steel composite panels and are delivered to site ready to fit for quick and simple fitting.

Each rooflight is manufactured to meet regulatory and industry requirements for light transmission, thermal insulation, safety levels, fire classifications and long-life performance.

  • Offers a diffused natural daylight
  • U-value 1.9W/m2K (options to as low as 0.9W/m2K)
  • BBA certified


Delivered anywhere in the UK including Scotland and Cornwall etc:

  • Minimum order for delivery = 100 metres
  • 100 metres – 150 metres = Delivery Cost £230 + VAT
  • 150 metres – 400 metres = Delivery Cost £150 + VAT
  • 400 metres + over = Free Delivery

NOTE! This product is not available for collection. You must have access for an articulated vehicle and a fork truck onsite for offloading. Please note, if no forklift is available, please tell the office staff so we can request a Moffatt vehicle. Failure to do this may result in re-delivery fees.

The composite panels we supply come in a great variety to ensure no matter our customers’ needs they are met. So, no matter your intended installation we will be able to provide the perfect solution for you and your needs. If you would like more information on our roofing products or you need advice on what would be the best solution for you get in touch on 01675 462 692 and our team will gladly offer you advice.
